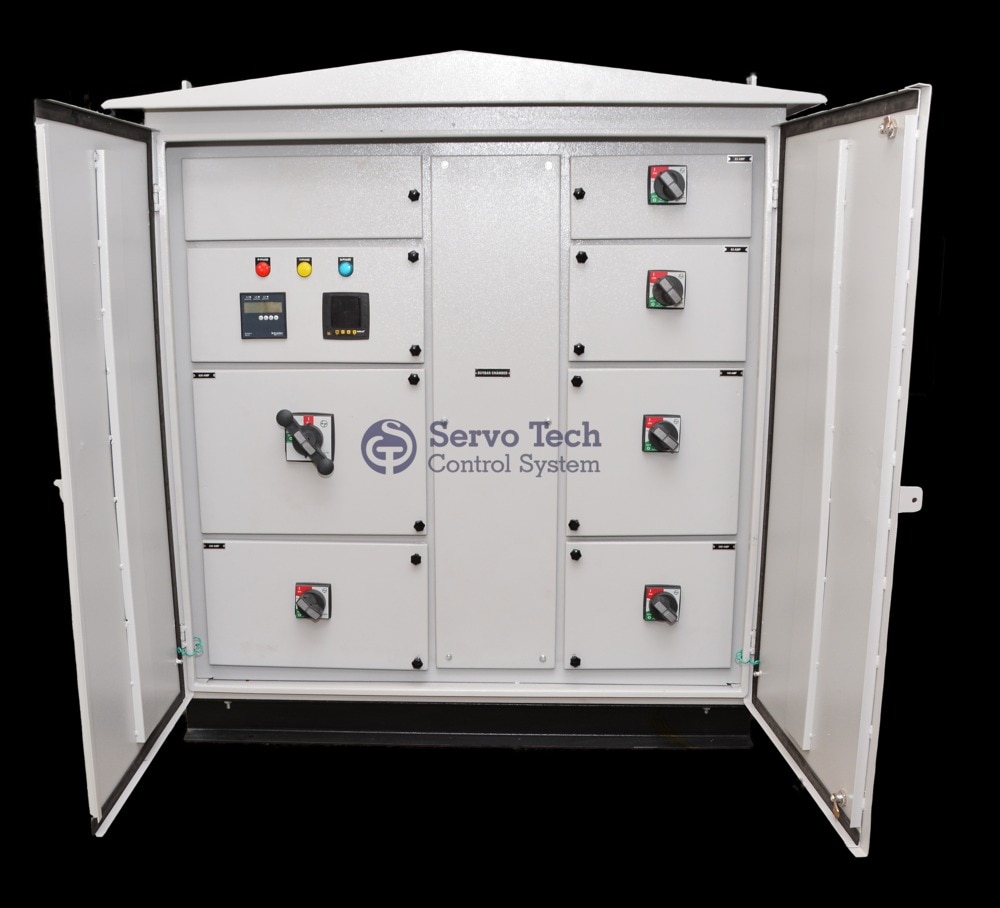

Power Distribution Panel

Power Distribution Panel Manufacturer and Supplier in Gujarat, India

SERVO TECH CONTROL SYSTEM is a manufacturer and supplier of industrial Power Distribution Panels designed for dependable electrical power distribution, circuit protection, and efficient power management. Manufactured using robust CRCA sheet steel and electrolytic-grade copper busbars, our Power Distribution Panels are suitable for industrial facilities, manufacturing plants, commercial buildings, and other electrical installations requiring reliable power distribution.

Our modular Power Distribution Panels operate at 415V AC, three-phase, 50 Hz, and support current ratings of 1600A and up to 2500A, depending on the selected configuration. The panels can be designed with MCBs, MCCBs, ACBs, meters, indicating lamps, neutral links, and earthing provisions to meet specific electrical system requirements.

The floor-mounted enclosure features a sturdy 2 mm CRCA sheet steel cabinet, polyester powder coating, a hinged door with a key lock, and front and rear service access. With an IP54 protection rating, the panel is designed to provide protection against dust ingress and water splashes under suitable installation conditions. Natural air cooling supports heat dissipation during normal operation.

SERVO TECH CONTROL SYSTEM offers customizable Power Distribution Panels with multiple outgoing ways, manual or automatic control options, and top or bottom cable entry. Panel dimensions and configurations can be tailored to the project layout and electrical load requirements.

We supply Power Distribution Panels across Gujarat, Madhya Pradesh, Maharashtra, and Rajasthan, with solutions available for industrial power distribution projects throughout India. Contact SERVO TECH CONTROL SYSTEM for product specifications, configuration options, and pricing for your application.

Key Features of Power Distribution Panel

Manufacturer: SERVO TECH CONTROL SYSTEM

Product Type: Industrial Power Distribution Panel

Panel Design: Modular construction

Cabinet Material: 2 mm CRCA sheet steel

Rated Operating Voltage: 415V AC, three-phase

Rated Insulation Voltage: 660V

Rated Current: 1600A / 2500A configurations

Maximum Current Rating: Up to 2500A

Frequency: 50 Hz

Busbar Material: Electrolytic-grade copper

Protection Rating: IP54

Protection Class: Class I

Control Options: Manual / Automatic

Cooling System: Natural air cooling

Main Components: MCB, MCCB, ACB, busbars, meters, and indicating lamps

Mounting: Floor-mounted

Cable Entry: Top or bottom

Service Access: Front and rear

Earthing: Double earthing provision

Neutral: Neutral link provided

Door: Hinged door with key lock

Operating Temperature: -10°C to +55°C

Humidity Tolerance: Up to 95% RH, subject to specified operating conditions

Surface Finish: Polyester powder coating

Dimensions: Customised according to design and site requirements

Applications of Power Distribution Panel

Manufacturing plants and industrial units

Engineering and fabrication facilities

Commercial buildings and office complexes

Industrial machinery and production lines

Warehouses and logistics facilities

Electrical distribution rooms and utility installations

Infrastructure and industrial development projects

Facilities requiring high-current electrical distribution

Power Distribution Panel Price and Supply

Price: ₹2,50,000 per piece, as specified; confirm the final price based on the selected configuration.

Minimum Order Quantity: 1 unit

Supply Capacity: Up to 10 units per week, subject to order requirements

Estimated Delivery Time: Approximately 3 weeks, subject to design approval and production schedule

Primary Markets: Gujarat, Madhya Pradesh, Maharashtra, and Rajasthan

For an accurate quotation, share your required current rating, incoming and outgoing feeder details, protection requirements, and installation specifications.

Frequently Asked Questions (FAQs)

1. What is a Power Distribution Panel?

Ans -A Power Distribution Panel is an electrical assembly that distributes incoming electrical power to multiple circuits. It houses switching and protection devices that help control electrical supply and protect connected equipment when correctly selected and installed.

2. Who manufactures Power Distribution Panels in Gujarat?

Ans -SERVO TECH CONTROL SYSTEM manufactures and supplies Power Distribution Panels for industrial and commercial applications, with supply coverage across Gujarat and selected markets throughout India.

3. What is the current rating of this Power Distribution Panel?

Ans -The panel is offered in 1600A and 2500A configurations, with a maximum rated current of up to 2500A, depending on the approved design and component selection.

4. What is the operating voltage of the panel?

Ans -The specified operating voltage is 415V AC, three-phase, at 50 Hz. The rated insulation voltage is 660V.

5. Which materials are used in the Power Distribution Panel?

Ans -The enclosure is manufactured from 2 mm CRCA sheet steel, while the busbars are made from electrolytic-grade copper. The cabinet has a polyester powder-coated finish.

6. What protection rating does the panel provide?

Ans -The specified protection rating is IP54. The enclosure helps protect internal components against dust and water splashes when installed and maintained according to the manufacturer's instructions.

7. Can the Power Distribution Panel be customised?

Ans -Yes. Panel dimensions, outgoing feeder arrangements, component selection, cable entry, and manual or automatic control options can be configured according to project requirements and electrical design specifications.

8. What components are included in the panel?

Ans -Depending on the selected design, components may include MCBs, MCCBs, ACBs, copper busbars, meters, indicating lamps, a neutral link, and earthing provisions.

9. How is the Power Distribution Panel installed?

Ans -The panel is designed for floor-mounted installation. Top or bottom cable entry can be selected according to the site layout. Installation should be completed by qualified electrical professionals.

10. Where does SERVO TECH CONTROL SYSTEM supply Power Distribution Panels?

Ans -The company lists Gujarat, Madhya Pradesh, Maharashtra, and Rajasthan as its primary domestic markets. Buyers from other Indian locations can enquire about supply availability.

11. What is the price of a Power Distribution Panel?

Ans -The listed price is ₹2,50,000 per piece, with a minimum order quantity of one unit. The final quotation may vary according to electrical ratings, components, enclosure design, and customisation.

12. How can I select the right Power Distribution Panel for my facility?

Ans - Consider the connected load, rated current, incoming supply, number of outgoing feeders, fault-level requirements, protection devices, installation environment, and applicable electrical standards. Consult a qualified electrical engineer to finalise the panel design.

Contact SERVO TECH CONTROL SYSTEM

Looking for an industrial Power Distribution Panel manufacturer and supplier in Gujarat, India? Contact SERVO TECH CONTROL SYSTEM to discuss your electrical distribution requirements, custom panel configuration, technical specifications, and pricing.
