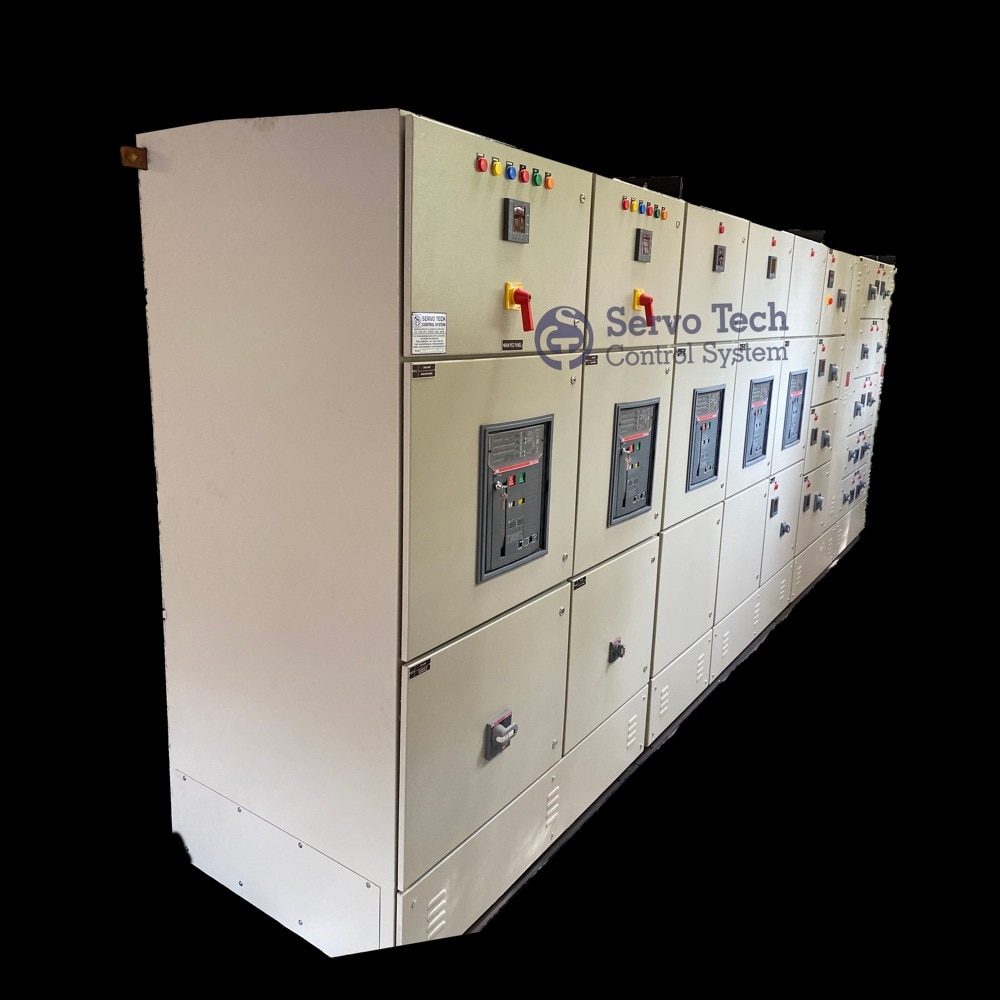

Power Control Center (PCC) Panel

Power Control Center (PCC) Panel Manufacturer in Ahmedabad, Gujarat, India

SERVO TECH CONTROL SYSTEM is a manufacturer of Power Control Center (PCC) Panels designed for safe, organized, and efficient electrical power distribution in industrial and commercial facilities. Our PCC panels are engineered to distribute incoming electrical power to multiple feeders, machinery, production lines, and utility systems through suitable switching, protection, and monitoring components.

Manufactured using CRCA mild steel sheet enclosures with an epoxy powder-coated finish, these panels feature a modular floor-mounted construction, customizable dimensions, and flexible configurations to suit different electrical installations. Depending on project requirements, the panels can be designed with current ratings up to 6300A, operating voltages of 380V/415V AC, and rated insulation voltage of 690V.

Key Features of Power Control Center Panel

High Current Capacity: Configurable for rated current requirements up to 6300A, subject to the approved electrical design.

Strong Enclosure Construction: Fabricated using CRCA sheet steel with a typical thickness of 1.6 mm to 2.5 mm, depending on the design.

Modular Floor-Mounted Design: Suitable for industrial electrical rooms, manufacturing plants, and commercial utility areas.

Flexible Circuit Protection: Can incorporate Air Circuit Breakers (ACBs), Moulded Case Circuit Breakers (MCCBs), Miniature Circuit Breakers (MCBs), Switch Fuse Units (SFUs), and changeover arrangements as specified.

Copper or Aluminium Busbars: Busbar material and configuration can be selected according to current capacity and project requirements.

Multiple Protection Options: Enclosure protection options include IP42, IP52, and IP54, subject to the final design and construction.

Efficient Heat Management: Available with natural air circulation or forced-air cooling using fans, as required.

Electrical Monitoring: Supports analog or digital meters for monitoring relevant electrical parameters.

Flexible Cable Routing: Top or bottom cable entry and exit arrangements can be provided to suit site conditions.

Convenient Maintenance: Front or rear service access, hinged doors, and modular arrangements can simplify inspection and servicing.

Safety-Oriented Design: Earthing arrangements, electrical or mechanical interlocking, and insulated busbar systems can be incorporated as per the approved specifications.

Applications of Power Control Center Panels

Power Control Center panels are used wherever electrical power must be distributed and controlled across multiple loads, departments, machines, or operational areas.

Manufacturing Industries: Centralized distribution of electrical power to production machinery and plant equipment.

Textile Industries: Power distribution for textile processing machinery, spinning units, weaving departments, and auxiliary systems.

Engineering and Fabrication Units: Electrical supply management for industrial machines, fabrication equipment, and workshop utilities.

Commercial Buildings: Power distribution for building services, equipment rooms, and electrical installations.

Hotels and Hospitality Facilities: Distribution of power to selected electrical loads, utility equipment, and service areas.

Educational Institutions: Electrical distribution for laboratories, workshops, administrative buildings, and utility installations.

Pharmaceutical and Chemical Plants: Customized power distribution solutions for suitable plant equipment and auxiliary loads.

Infrastructure and Utility Projects: Integration into electrical distribution systems where the specified design and protection arrangements are appropriate.

Warehouses and Logistics Facilities: Distribution of power to handling equipment, lighting circuits, and operational utilities.

Industrial Processing Plants: Centralized feeder control for pumps, motors, production equipment, and supporting systems.

Customized Power Control Center Panel Solutions

SERVO TECH CONTROL SYSTEM offers configurable PCC panel solutions based on the customer's connected load, incoming supply, feeder requirements, installation space, and operating environment.

The panel design can be adapted to include single or double busbar arrangements, different breaker combinations, customized feeder counts, cable or bus duct connections, metering instruments, and manual or automatic control arrangements. The selection of busbar capacity, short-circuit withstand capability, enclosure protection, and cooling requirements depends on the approved electrical design.

For projects requiring future expansion, a modular configuration can help organize outgoing feeders and facilitate planned modifications. Final dimensions and internal layouts are developed to suit the installation and maintenance requirements of the facility.

Construction and Electrical Protection

The PCC panel enclosure is manufactured from CRCA sheet steel and finished with an epoxy powder coating to support durability and provide a professional appearance. Hinged, gasketed doors can be incorporated to help limit dust ingress, while suitable busbar insulation and earthing provisions support the intended electrical safety design.

Air Circuit Breakers, MCCBs, MCBs, switching devices, control wiring, and monitoring instruments are selected according to the required load and protection scheme. Electrical or mechanical interlocking can also be provided where required to help prevent specified unsafe switching operations.

Protection levels such as IP42, IP52, and IP54 are offered according to the intended application and enclosure design. The final protection level and applicable testing requirements should be confirmed before ordering.

Power Control Center Panel Price and Availability

The indicative listed price of the Power Control Center Panel is ₹2,00,000 per piece, with a minimum order quantity of 1 piece. The final quotation may vary according to the current rating, number of feeders, breaker make and capacity, busbar material, enclosure specifications, metering requirements, and customization.

Minimum Order Quantity: 1 Piece

Indicative Price: ₹2,00,000 per Piece

Supply Capacity: Up to 10 Pieces per Week, as listed

Estimated Delivery Time: Approximately 3 Weeks, subject to design approval and order requirements

FOB Port: Ahmedabad, India

Payment Terms: Cash Advance (CA) / Cash in Advance (CID), as agreed

Domestic Markets: Gujarat, Madhya Pradesh, Maharashtra, Rajasthan

Export Markets: Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, the Middle East, and Africa

Buyers should confirm the final price, taxes, freight, delivery schedule, technical specifications, and applicable certification documentation with the manufacturer before placing an order.

Why Choose SERVO TECH CONTROL SYSTEM?

Choosing a Power Control Center Panel requires attention to electrical ratings, component selection, construction quality, safety provisions, and installation requirements. SERVO TECH CONTROL SYSTEM provides configurable panel solutions to help industrial and commercial customers meet their power distribution needs.

Our approach focuses on application-based design, practical panel layouts, appropriate switching and protection components, and customization according to project requirements. From selecting the current rating to determining cable entry, feeder arrangements, metering, and enclosure protection, the panel configuration can be developed around the customer's electrical distribution plan.

For a suitable PCC panel, share your incoming supply details, required current rating, connected load, number of outgoing feeders, and installation requirements to obtain a project-specific quotation.

Frequently Asked Questions (FAQs)

1. What is a Power Control Center (PCC) Panel?

Ans -A Power Control Center panel is an electrical distribution assembly that receives incoming power and distributes it to multiple outgoing feeders. It uses switching devices, circuit breakers, busbars, metering instruments, and protective components to manage electrical power distribution across industrial or commercial installations.

2. Who manufactures Power Control Center Panels in Ahmedabad, Gujarat?

Ans -SERVO TECH CONTROL SYSTEM manufactures Power Control Center panels for industrial and commercial power distribution applications. Customers can discuss their required current rating, voltage, feeder configuration, enclosure protection, and customization requirements with the manufacturer.

3. What is the maximum current rating of the PCC panel?

Ans -The specified product range supports current ratings up to 6300A. A 5000A configuration is also listed. The appropriate rating depends on the incoming supply, connected load, busbar design, short-circuit requirements, and selected protective devices.

4. What is the operating voltage of a Power Control Center Panel?

Ans -The listed operating voltage is 380V/415V AC, with a specified rated operating voltage of 415V and a listed rated voltage of 440V. The required system voltage and insulation rating should be confirmed during technical approval.

5. Which materials are used to manufacture PCC panels?

Ans -The enclosure is specified in CRCA sheet steel or mild steel, with a powder-coated surface finish. Busbars can be manufactured from electrolytic-grade copper or aluminium according to the approved electrical design.

6. Which circuit breakers can be installed in a PCC panel?

Ans -Depending on the application, the panel can be configured with Air Circuit Breakers (ACBs), Moulded Case Circuit Breakers (MCCBs), Miniature Circuit Breakers (MCBs), Switch Fuse Units (SFUs), and suitable changeover arrangements.

7. Are Power Control Center panels available in customized sizes?

Ans -Yes. The panel dimensions, number of outgoing feeders, busbar arrangement, breaker selection, cable entry, service access, cooling method, and enclosure protection can be customized according to the project requirements.

8. Which IP protection levels are available?

Ans -The listed options are IP42, IP52, and IP54. The appropriate enclosure rating depends on the installation environment and the final panel construction. The selected rating should be confirmed in the technical quotation.

9. What standards are applicable to Power Control Center panels?

Ans -The supplied specifications reference IS 8623 and IEC 61439. The applicable standard and relevant edition depend on the assembly design and project requirements. Compliance claims and any CE or ISO certifications should be supported by valid documentation applicable to the manufacturer and product.

10. What is the price of a Power Control Center Panel?

Ans -The listed indicative price is ₹2,00,000 per piece, with a minimum order quantity of one piece. The final price depends on the panel rating, breaker specifications, busbar material, feeder count, metering, enclosure design, and other project-specific requirements.

11. What is the delivery time for a PCC panel?

Ans -The listed delivery time is approximately three weeks. The actual lead time depends on design approval, component availability, customization, order quantity, and the agreed delivery terms.

12. How can I request a quotation for a PCC panel?

Ans -Contact SERVO TECH CONTROL SYSTEM with your required current rating, incoming supply voltage, number of feeders, connected load, preferred breaker configuration, enclosure protection level, and installation details. These inputs help the manufacturer prepare a suitable technical proposal and quotation.

Final ratings, dimensions, component selection, protection level, and compliance requirements are confirmed during technical evaluation and design approval.
