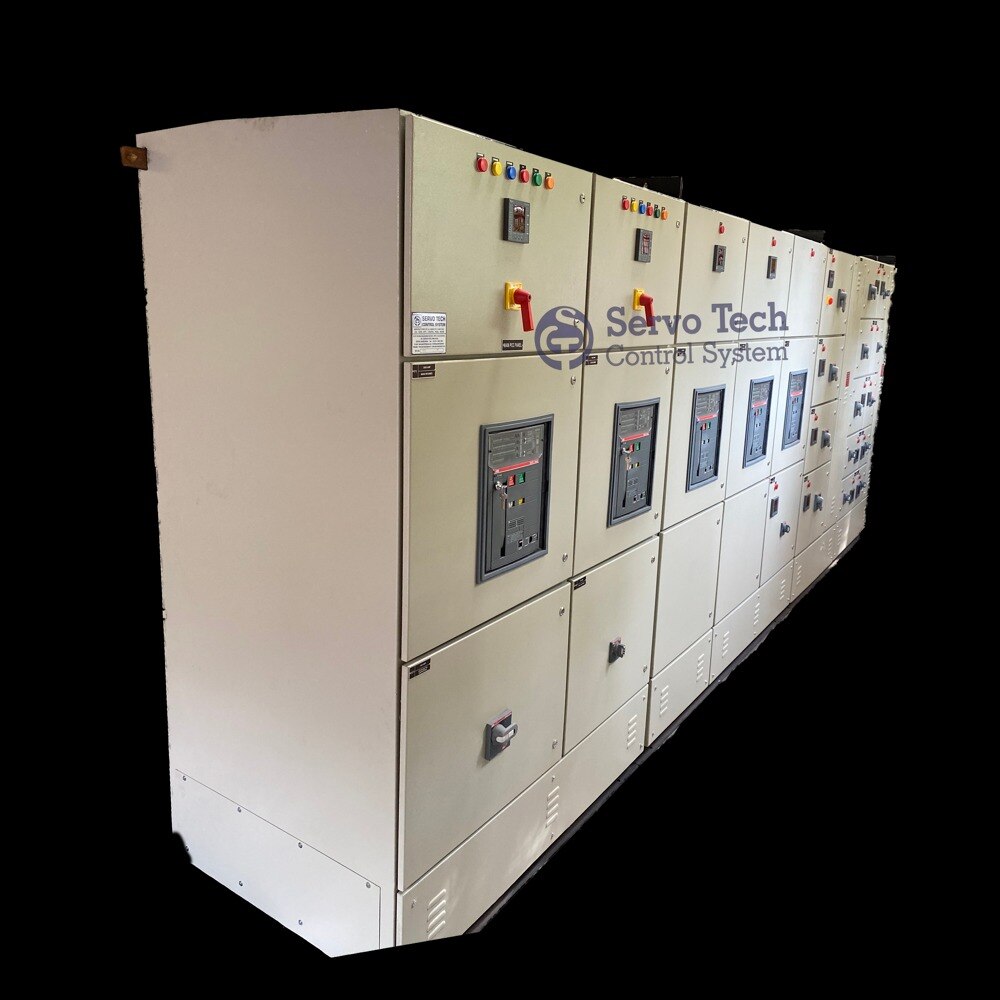

Power Control Center Panels

PCC Panel Manufacturer in India

SERVO TECH CONTROL SYSTEM is a manufacturer of PCC (Power Control Center) Panels designed for reliable electrical power distribution, circuit protection, and power management in industrial and commercial installations. Our PCC Panels are engineered to accommodate different load requirements, feeder configurations, and installation environments. With a rated voltage of 415V AC, current ratings up to 6300A, and customizable panel dimensions, these panels can be configured according to project specifications.

Manufactured using powder-coated CRCA steel sheets, the PCC Panels feature a robust enclosure, organized component arrangement, and maintenance-friendly construction. Depending on the application, the panels can incorporate MCBs, MCCBs, ACBs, busbars, current transformers (CTs), potential transformers (PTs), protection relays, meters, and indication lamps. Indoor and outdoor options, multiple IP protection ratings, and hardwired or SCADA-compatible connectivity make them suitable for a wide range of electrical distribution applications.

SERVO TECH CONTROL SYSTEM offers PCC Panel solutions for industrial facilities, manufacturing units, infrastructure projects, and commercial buildings, with customized designs to meet specific electrical and operational requirements.

Key Features of PCC Panel

Rated Voltage: 415V AC

Current Rating: Available in configurations up to 6300A

Rated Insulation Voltage: 690V

Frequency: 50 Hz

Protection Ratings: IP42, IP52, IP54, and IP65, depending on configuration

Panel Installation: Indoor and outdoor options

Enclosure Material: Powder-coated CRCA steel sheet

Sheet Thickness: 1.6 mm to 2.5 mm

Cooling Options: Natural ventilation or forced cooling

Busbar Material: Electrolytic copper or aluminium

Feeder Options: Fixed or draw-out arrangements

Panel Configuration: 3-way, 4-way, and customized designs

Control Options: Manual or automatic operation

Connectivity: Hardwired or SCADA-compatible configurations

Cable Entry: Top or bottom entry

Mounting: Floor-mounted construction

Access: Front or rear access, as specified

Door Design: Single-door or double-door arrangement with gasket

Earthing: Double earth bus provision

Safety Features: Mechanical and electrical interlocking options

Construction: Compartmentalized or non-compartmentalized

Finish: Powder-coated grey or off-white, with matt or textured finish options

Short-Circuit Withstand Capacity: Up to 50 kA, subject to the specified design and verified rating

Panel Dimensions: Customized according to client requirements

Applicable Standards: IS 8623 / IEC 61439, subject to the applicable design and compliance requirements

Applications of PCC Panel

PCC Panels serve as the main power distribution and control point for electrical systems that require organized power delivery, circuit protection, and effective load management.

Manufacturing Industries: Distribution of electrical power to production machinery, motors, and industrial equipment.

Pharmaceutical Plants: Power distribution for manufacturing equipment and supporting electrical systems.

Textile Industries: Electrical supply management for textile machinery and processing equipment.

Chemical and Process Industries: Centralized distribution for plant equipment and auxiliary systems, according to site requirements.

Commercial Buildings: Power management for large buildings, offices, and commercial facilities.

Infrastructure Projects: Electrical distribution for industrial infrastructure and utility installations.

Water Treatment Plants: Power distribution for pumps, motors, and treatment equipment.

Engineering Workshops: Electrical control and distribution for machine tools and workshop equipment.

Warehouses and Logistics Facilities: Distribution of power to lighting, material-handling equipment, and other electrical loads.

Industrial Utility Rooms: Main power distribution for multiple outgoing feeders and connected electrical systems.

Why Choose SERVO TECH CONTROL SYSTEM for PCC Panels?

SERVO TECH CONTROL SYSTEM provides PCC Panel solutions tailored to the electrical requirements of industrial and commercial projects. Our configurable designs accommodate different current ratings, feeder arrangements, enclosure requirements, and control preferences.

Customized Manufacturing: Panel dimensions, feeder configurations, and component arrangements can be planned according to project requirements.

Flexible Panel Designs: Available in 3-way, 4-way, and other specified configurations.

Application-Based Protection: Enclosure protection options selected according to installation conditions and project specifications.

Organized Electrical Assembly: Provision for meters, protection devices, busbars, indicators, and control components.

Maintenance Accessibility: Front or rear access and suitable internal layouts can simplify inspection and servicing.

Industrial Applications: Designed for power distribution requirements across multiple industries.

Project-Based Supply: Orders can be planned according to technical specifications, quantity, and delivery requirements.

PCC Panel Price in India

The indicative price of a PCC Panel from SERVO TECH CONTROL SYSTEM is ₹1,00,000 per piece, with a minimum order quantity of one piece. The final price depends on the current rating, number of feeders, enclosure size, IP protection level, busbar material, selected electrical components, automation requirements, and customized construction.

For an accurate quotation, buyers should share their electrical load details, incomer and outgoing feeder requirements, fault-level specifications, installation environment, and preferred panel configuration.

Order Quantity, Manufacturing and Delivery

SERVO TECH CONTROL SYSTEM lists a supply capacity of up to 10 PCC Panels per week. The stated delivery period is seven days; the actual manufacturing and dispatch schedule should be confirmed based on panel design approval, component availability, order quantity, and customization requirements.

PCC Panel enquiries are welcome from industrial buyers, electrical contractors, project consultants, system integrators, and commercial facility operators across India.

Frequently Asked Questions About PCC Panels

1. What is a PCC Panel?

Ans -A PCC (Power Control Center) Panel is an electrical distribution assembly used to receive power from an incoming supply and distribute it through outgoing feeders to different loads. It can incorporate circuit breakers, busbars, meters, protection devices, and monitoring components.

2. Who manufactures PCC Panels?

Ans -SERVO TECH CONTROL SYSTEM manufactures PCC Panels for industrial and commercial power distribution applications, with configurations available according to project requirements.

3. What is the operating voltage of a PCC Panel?

Ans -The specified operating voltage for this PCC Panel is 415V AC at 50 Hz. The rated insulation voltage is 690V.

4. What is the maximum current rating available?

Ans -The listed current rating extends up to 6300A. The appropriate rating depends on the electrical load, busbar design, protective devices, and project specifications.

5. What is the price of a PCC Panel?

Ans -The indicative listed price is ₹1,00,000 per piece. The final quotation may vary according to the panel's electrical rating, dimensions, components, protection level, and customization.

6. Can PCC Panels be manufactured in customized sizes?

Ans -Yes. Panel dimensions, feeder arrangements, cable entry positions, enclosure construction, and other design details can be specified according to project requirements.

7. Are PCC Panels suitable for outdoor installation?

Ans -Outdoor configurations can be specified. The required IP protection rating, enclosure design, sealing, ventilation, and environmental protection must be selected for the actual site conditions.

8. Which protection ratings are available for PCC Panels?

Ans -The listed options are IP42, IP52, IP54, and IP65. The achievable rating depends on the final enclosure design and configuration.

9. Can a PCC Panel be integrated with SCADA?

Ans -Yes. SCADA-compatible configurations can be specified where required. The necessary monitoring devices, communication interfaces, and control components depend on the automation system.

10. Which industries use PCC Panels?

Ans -PCC Panels are used in manufacturing plants, textile units, pharmaceutical facilities, water treatment plants, engineering workshops, commercial buildings, and other installations requiring centralized power distribution.

11. What is the minimum order quantity?

Ans -The listed minimum order quantity is one piece, making enquiries possible for individual panels as well as larger project requirements.

12. What is the delivery time for a PCC Panel?

Ans -The stated delivery time is seven days. Buyers should confirm the delivery schedule with SERVO TECH CONTROL SYSTEM before placing an order, especially for customized panels.

13. What standards apply to PCC Panels?

Ans -The supplied specifications reference IS 8623 / IEC 61439. The applicable standard and conformity requirements should be confirmed for the particular panel design and intended installation.

14. How can I request a PCC Panel quotation?

Ans - the required current rating, number of feeders, incomer details, short-circuit level, indoor or outdoor installation requirements, preferred IP rating, and any SCADA or automation needs with SERVO TECH CONTROL SYSTEM to obtain a project-specific quotation.

Contact SERVO TECH CONTROL SYSTEM for PCC Panels

Looking for a PCC Panel manufacturer for your industrial power distribution project? Contact SERVO TECH CONTROL SYSTEM to discuss your electrical specifications, customized panel requirements, quantity, and delivery schedule.
