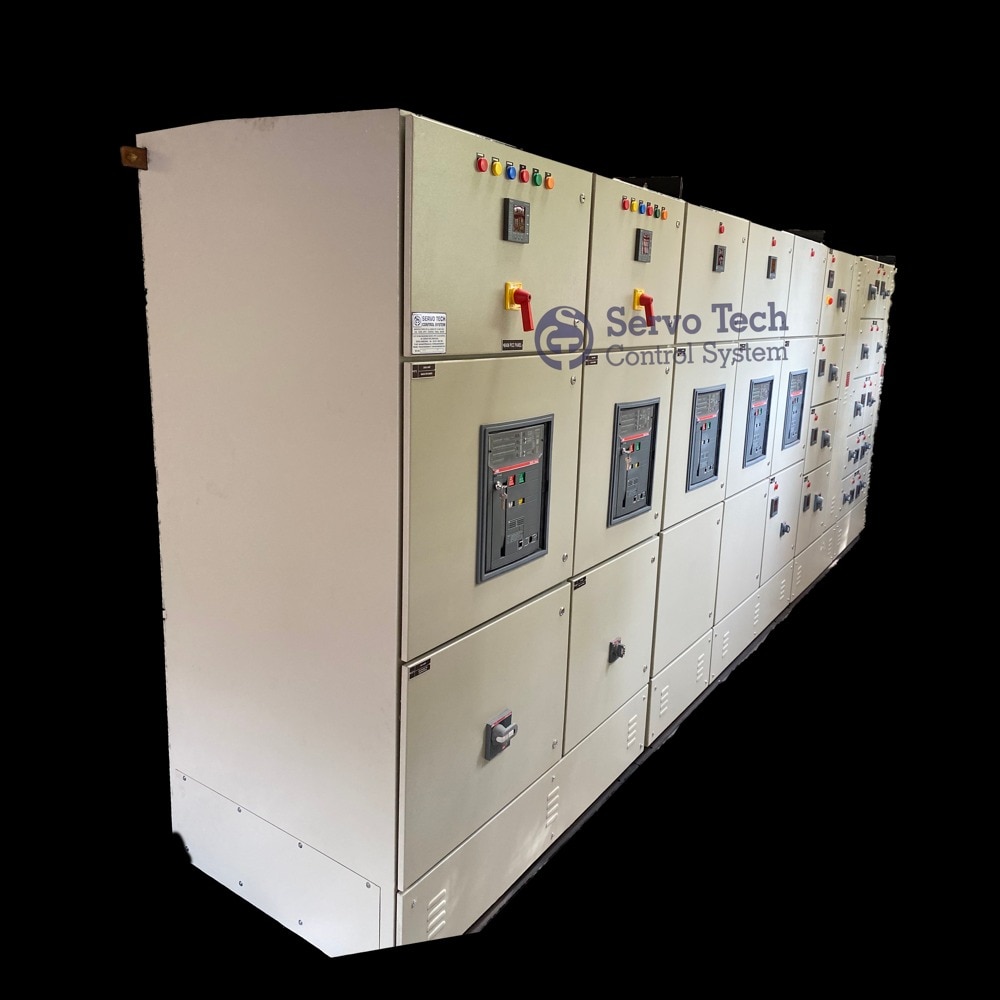

PCC Panel

PCC Panel Manufacturer in Ahmedabad, Gujarat, India

SERVO TECH CONTROL SYSTEM is a manufacturer of PCC Panels in Ahmedabad, Gujarat, India, offering industrial Power Control Centre Panels for reliable electrical power distribution, load management, and centralized control. Designed for industrial facilities, commercial establishments, manufacturing plants, and utility installations, our PCC Panels are engineered to meet diverse electrical infrastructure requirements.

Manufactured using high-grade CRCA steel and mild steel enclosures with a durable powder-coated finish, our PCC Panels combine structural strength, practical accessibility, and configurable electrical components. Depending on project specifications, the panels can incorporate circuit breakers, copper or aluminium busbars, protection relays, controllers, and digital or analogue metering instruments.

Our PCC Panels are available with current ratings up to 6300 Amps, a standard operating voltage of 415V AC, and configurable enclosure protection options of IP42, IP54, and IP55. Dimensions, the number of outgoing ways, cable entry arrangements, metering facilities, and control configurations can be customized to suit individual site requirements.

Whether you require an industrial power distribution panel for a manufacturing unit, processing plant, utility installation, or large commercial facility, SERVO TECH CONTROL SYSTEM provides configurable PCC Panel solutions designed around your electrical distribution needs.

Key Features of PCC Panel

High Current Capacity: Configurations available for rated currents up to 6300A, subject to the selected design.

Robust Enclosure: Fabricated using high-grade CRCA steel and mild steel for mechanical strength.

Modular Construction: Supports practical installation, maintenance, and configuration according to project requirements.

Multiple IP Protection Options: IP42, IP54, and IP55 enclosure options available as specified.

Powder-Coated Finish: Siemens Grey (RAL 7032) finish for a professional appearance and surface protection.

Flexible Panel Configuration: Multiple outgoing ways and customizable panel dimensions.

Electrical Monitoring: Digital or analogue meters and LED status indicators.

Reliable Switching and Protection: Compatible with suitable breakers, relays, busbars, and other electrical components.

Flexible Cooling Arrangements: Natural ventilation or forced cooling, depending on the design.

Convenient Cable Connections: Top or bottom cable entry options.

Maintenance-Friendly Access: Hinged or double-door arrangements, subject to configuration.

Optional Automation: Microprocessor- or PLC-based control and optional remote monitoring where specified.

Applications of PCC Panel

PCC Panels are used wherever electrical power needs to be distributed and managed across multiple circuits, machines, and operational areas.

Manufacturing Industries: Centralized electrical distribution for production equipment and machinery.

Chemical Processing Plants: Power distribution for process equipment and associated electrical loads.

Pharmaceutical Industries: Electrical supply management for manufacturing and utility systems.

Plastic Processing Units: Power distribution for moulding machines, extruders, and auxiliary equipment.

Refrigeration and Cold Storage: Distribution and control of electrical loads used in cooling systems.

Dairy and Food Processing Plants: Electrical infrastructure for processing, packaging, and utility equipment.

Refineries and Process Industries: Power distribution for suitable industrial installations.

Commercial Buildings: Centralized management of electrical distribution circuits.

Infrastructure and Utility Projects: Distribution of electrical power across designated sections of a facility.

Industrial Motor Control Systems: Power supply management for motors, pumps, and related equipment.

Customized PCC Panel Manufacturing

SERVO TECH CONTROL SYSTEM offers PCC Panel configurations based on the electrical requirements and installation conditions of each project. Customization can include panel dimensions, current ratings, incoming and outgoing feeders, busbar material, metering instruments, protection devices, cable entry locations, and enclosure protection levels.

Customers can specify IP42, IP54, or IP55 protection options, subject to enclosure design and the installation environment. Optional PLC-based control, microprocessor-based functions, forced ventilation, and remote monitoring can also be incorporated where required.

The panel layout and component selection are finalized according to the connected load, fault-level requirements, site conditions, applicable standards, and approved technical specifications. This approach helps ensure that the selected PCC Panel is suitable for the intended electrical distribution system.

Why Choose SERVO TECH CONTROL SYSTEM for PCC Panels?

Industrial panel manufacturing tailored to customer specifications.

Configurable electrical distribution and protection arrangements.

Multiple enclosure protection options for different installation environments.

Choice of copper or aluminium busbar arrangements.

Optional digital metering and automation features.

Custom dimensions, cable entry, and outgoing feeder configurations.

Supply capability for individual orders and industrial projects.

Support for domestic requirements and export enquiries.

When selecting a PCC Panel manufacturer, it is important to consider the connected load, rated current, fault level, protection requirements, installation conditions, and future expansion needs. SERVO TECH CONTROL SYSTEM can configure the panel according to the approved project requirements.

Frequently Asked Questions About PCC Panels

1. What is a PCC Panel?

Ans - A PCC Panel, or Power Control Centre Panel, is an electrical distribution assembly used to receive power from an incoming source and distribute it to multiple outgoing feeders. It can include circuit breakers, busbars, protection relays, metering instruments, and other electrical components for managing industrial power distribution.

2. Who manufactures PCC Panels in Ahmedabad, Gujarat?

Ans - SERVO TECH CONTROL SYSTEM is a PCC Panel manufacturer based in Ahmedabad, Gujarat, India. The company offers configurable industrial power distribution panels according to customer specifications and project requirements.

3. What is the maximum current rating of the PCC Panel?

Ans - The PCC Panel configurations described here support current ratings up to 6300A. The final rated current depends on busbar sizing, thermal performance, component selection, enclosure design, and the approved electrical specifications.

4. What is the operating voltage of this PCC Panel?

Ans - The specified rated operating voltage is 415V AC, three-phase, at 50Hz. The system must be designed and verified for the actual electrical supply and installation requirements.

5. What IP ratings are available for PCC Panels?

Ans - IP42, IP54, and IP55 options are available according to the selected enclosure design. The appropriate rating depends on exposure to dust, water, and other environmental conditions at the installation site.

6. Can the PCC Panel be customized?

Ans - Yes. Panel dimensions, feeder ways, current ratings, busbar material, cable entry, metering devices, door arrangements, enclosure protection, and optional control or monitoring functions can be configured according to project requirements.

7. Which industries use PCC Panels?

Ans - PCC Panels are used in manufacturing plants, chemical and pharmaceutical industries, plastic processing units, dairies, refrigeration facilities, commercial buildings, and industrial utility systems requiring centralized electrical distribution.

8. What materials are used to manufacture the PCC Panel?

Ans - The specified construction uses high-grade CRCA steel for the cabinet and mild steel for structural and cover components, with a powder-coated finish. Copper or aluminium busbars can be selected according to the approved electrical design.

9. What is the price of a PCC Panel?

Ans - The indicative price is ₹2,00,000 per piece, with a minimum order quantity of one piece. The final quotation depends on the current rating, panel dimensions, number of feeders, protection devices, automation features, and customization requirements.

10. What is the delivery time and supply capacity?

Ans - The stated estimated delivery time is approximately three weeks, with a supply capacity of up to 10 pieces per week. Actual delivery and production schedules should be confirmed when placing the order.

11. Which standards apply to the PCC Panel?

Ans - IEC 61439 and IS 8623 are the standards specified for the product, as applicable to the design. The manufacturer and purchaser should confirm the relevant edition, applicable part, testing requirements, and compliance documentation for the specific assembly.

12. How can I select the right PCC Panel for my facility?

Ans - Share the connected load, incoming supply details, required current rating, number of outgoing feeders, fault-level information, installation environment, required IP rating, and any automation needs. These details help determine a suitable panel configuration.

Contact SERVO TECH CONTROL SYSTEM

Looking for a PCC Panel manufacturer in Ahmedabad, Gujarat, India? Contact SERVO TECH CONTROL SYSTEM for pricing, technical specifications, customized panel configurations, and supply enquiries for industrial power distribution projects.

We cater to customer requirements across Gujarat, Madhya Pradesh, Maharashtra, Rajasthan, and other domestic and international markets.

SERVO TECH CONTROL SYSTEM – Manufacturer of PCC Panels for Industrial Power Distribution.
