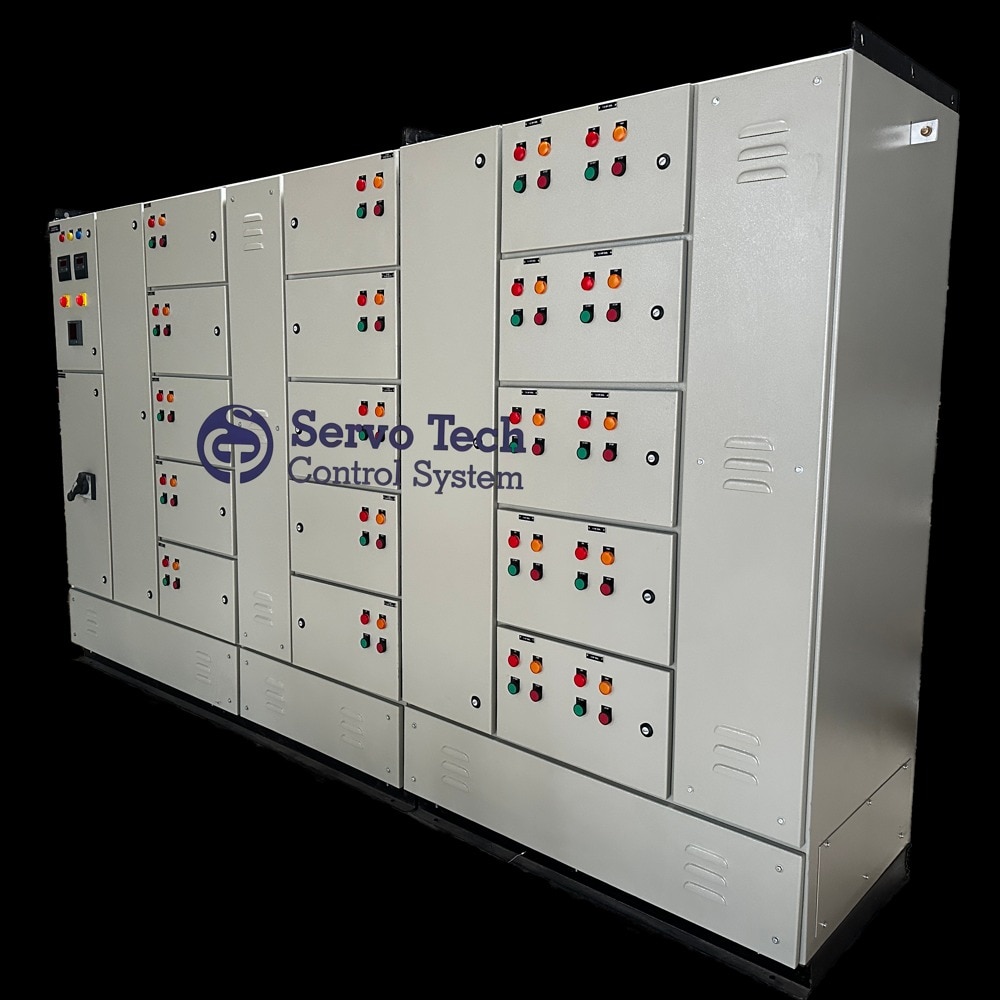

Motor Control Center Panel

Motor Control Center Panel Manufacturer, Supplier and Dealer in Gujarat, India

SERVO TECH CONTROL SYSTEM is a manufacturer and supplier of Motor Control Center (MCC) Panels designed for industrial motor management, electrical control and power distribution applications. Our MCC panels are manufactured using quality mild steel and CRCA sheet steel with a robust, modular construction to meet diverse industrial requirements. Available in fixed and drawout configurations, these panels can be customized according to the required current rating, dimensions, control system, protection level and installation conditions.

Our Motor Control Center Panels operate on a standard 415 V AC supply and support rated operational voltages up to 690 V, with rated insulation voltage up to 1000 V. Depending on the design, the panels can accommodate current ratings up to 6300 A and configurations of up to 24 ways. They integrate essential electrical components, including MCBs, MCCBs, contactors, overload relays, ammeters and voltmeters, for motor switching, electrical protection and operational monitoring.

Designed for manufacturing plants, industrial machinery, processing facilities and infrastructure projects, our MCC panels are available with manual, semi-automatic or automatic control options. Customers can choose air-ventilated or forced-cooling arrangements, analog or digital meters, copper or aluminium busbars, and IP42, IP54 or IP55 enclosure protection, subject to the selected design and specifications.

SERVO TECH CONTROL SYSTEM focuses on delivering practical, application-oriented electrical panel solutions with durable construction, organized internal components and convenient maintenance access. Whether you require a fixed-type MCC panel for a standard installation or a drawout-type panel for an industrial electrical system, we offer customized solutions based on your project requirements.

As a Motor Control Center Panel Manufacturer in Gujarat, we serve industrial customers across Gujarat, Madhya Pradesh, Maharashtra and Rajasthan. Contact SERVO TECH CONTROL SYSTEM for MCC panel specifications, customization options, pricing and delivery information.

Key Features of Motor Control Center Panel

Robust Construction: Manufactured using mild steel or CRCA sheet steel with a durable surface finish.

Flexible Panel Configuration: Available in fixed and drawout-type designs.

High Current Capacity: Configurable for rated currents up to 6300 A, subject to the selected design.

Multiple Control Options: Manual, semi-automatic and fully automatic operation.

Electrical Protection: Provision for MCBs, MCCBs, contactors, overload relays and other specified protective devices.

Flexible Enclosure Protection: IP42, IP54 and IP55 options, depending on project requirements.

Busbar Options: Electrolytic-grade copper or aluminium busbars.

Monitoring Facilities: Analog or digital ammeters and voltmeters.

Customized Dimensions: Panel dimensions and internal arrangements designed according to installation requirements.

Convenient Cable Entry: Top or bottom cable entry options.

Cooling Arrangements: Air-ventilated or forced-cooling systems, as required.

Industrial Design: Compartmentalized construction with optional mechanical and electrical interlocking.

Applications of Motor Control Center Panels

🏭 Manufacturing Industries: Centralized control of motors used in production machinery and industrial equipment.

⚙️ Process Industries: Motor switching and control for process-related equipment and auxiliary systems.

💧 Water and Wastewater Treatment Plants: Control of pumps, mixers and other motor-driven equipment.

🧵 Textile Industries: Electrical control for textile machinery, processing equipment and utility motors.

🏗️ Infrastructure Projects: Motor control and power distribution for specified electrical installations.

🧪 Chemical and Pharmaceutical Plants: Control of process equipment and utility motors, subject to application-specific safety requirements.

📦 Material Handling Systems: Control of conveyors, lifting equipment and other motorized machinery.

⚡ Industrial Utility Systems: Motor control for ventilation, pumping and auxiliary services.

The final price may vary according to current rating, panel dimensions, component brands, automation level, busbar material, IP rating and customization. Confirm the quotation and delivery schedule with SERVO TECH CONTROL SYSTEM before ordering.

Why Choose SERVO TECH CONTROL SYSTEM for MCC Panels?

Choosing the right Motor Control Center Panel is important for dependable motor operation, electrical protection and efficient plant maintenance. SERVO TECH CONTROL SYSTEM offers configurable MCC panel solutions designed around individual industrial requirements.

Application-based panel configuration and customization.

Fixed and drawout panel options.

Selection of electrical components according to project specifications.

Multiple enclosure and cooling arrangements.

Flexible busbar, metering and automation options.

Supply support for industrial customers across Gujarat and selected Indian states.

If you are searching for a Motor Control Center Panel Manufacturer in Ahmedabad, Gujarat, India, contact SERVO TECH CONTROL SYSTEM to discuss your electrical panel requirements and obtain a project-specific quotation.

Frequently Asked Questions (FAQs)

1. What is a Motor Control Center (MCC) Panel?

Ans -A Motor Control Center Panel is an electrical assembly used to control, protect and monitor multiple electric motors from a centralized location. It can incorporate motor starters, contactors, circuit breakers, overload relays, meters and associated control equipment.

2. What types of MCC panels are available?

Ans -MCC panels are commonly available in fixed-type and drawout-type configurations. Fixed-type assemblies provide permanently installed components, while drawout arrangements allow compatible units to be withdrawn for inspection or maintenance according to the panel design.

3. What is the operating voltage of this MCC panel?

Ans -The specified operating voltage is 415 V AC, with a rated operational voltage of up to 690 V and rated insulation voltage of up to 1000 V. The applicable ratings must be confirmed for the selected configuration.

4. What is the maximum current rating of the MCC panel?

Ans -The panel can be configured for current ratings up to 6300 A, subject to engineering design, busbar sizing, component selection, temperature-rise requirements and verification.

5. Can the MCC panel be customized?

Ans -Yes. Dimensions, number of ways, current rating, control arrangements, cable entry, metering, cooling and enclosure protection can be selected according to the installation and project requirements.

6. Which IP ratings are available?

Ans -IP42, IP54 and IP55 options are specified, depending on the enclosure design. The appropriate rating should be selected according to the installation environment and the required level of protection against solid objects and water ingress.

7. Which components are used in an MCC panel?

Ans -Depending on the design, components can include MCBs, MCCBs, contactors, overload relays, ammeters, voltmeters, control transformers, auxiliary relays and other specified electrical accessories.

8. Where are MCC panels used?

Ans -MCC panels are used in manufacturing plants, textile units, water treatment facilities, process industries, infrastructure installations and other facilities that operate multiple motor-driven machines.

9. What is the price of a Motor Control Center Panel?

Ans -The indicative listed price is ₹1,00,000 per unit, with a minimum order quantity of one unit. The actual quotation depends on electrical ratings, component selection, panel configuration and customization.

10. How can I order an MCC panel from SERVO TECH CONTROL SYSTEM?

Ans - Share your required current rating, operating voltage, number of motor feeders, starter type, enclosure IP rating, automation requirements and installation details. SERVO TECH CONTROL SYSTEM can then assess the specifications and provide a suitable quotation.
