MCC Panel Manufacturer

MCC Panel Manufacturer in Ahmedabad, Gujarat, India

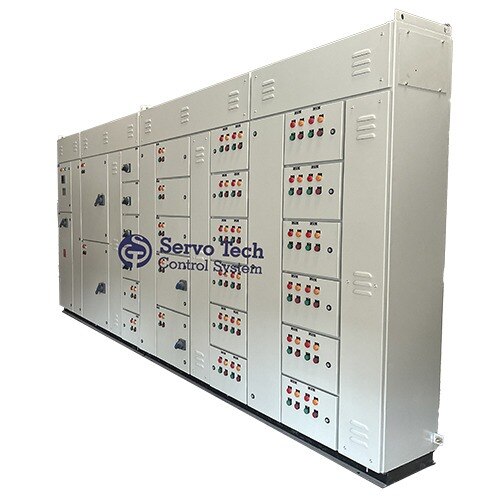

SERVO TECH CONTROL SYSTEM is a manufacturer of Motor Control Center (MCC) Panels in Ahmedabad, Gujarat, India, offering electrical control panel solutions for industrial motor management, power distribution, and utility automation. Our MCC panels are designed to centralize motor control operations, organize electrical components, and support reliable operation in industrial facilities.

The MCC Panel operates at a rated voltage of 415V AC and can be configured with current ratings ranging from 630A to 6300A, depending on the project requirements. Manufactured using a mild steel enclosure with an epoxy powder-coated finish, the panel is available in modular and compartmentalized configurations. The design can include MCBs, MCCBs, contactors, overload relays, measuring instruments, indication lamps, and other electrical components according to the required application.

SERVO TECH CONTROL SYSTEM offers customized MCC panel solutions with flexible dimensions, multiple feeder arrangements, top or bottom cable entry, dedicated earthing buses, and copper or aluminium busbars. Optional features include automatic control, remote monitoring, communication interfaces, and modular extensions for future expansion.

Businesses looking for an MCC Panel Manufacturer in Gujarat can contact SERVO TECH CONTROL SYSTEM for industrial motor control panels tailored to their electrical loads, installation conditions, and operational requirements. We serve industrial customers across Ahmedabad and other locations throughout India.

Key Features of MCC Panels

Rated Operating Voltage: 415V AC

Rated Insulation Voltage: 660V AC

Current Rating: 630A to 6300A

Enclosure Material: Mild steel sheet with powder-coated finish

Panel Design: Modular, floor-mounted, and compartmentalized

Panel Form: Form 2, Form 3, or Form 4, as required by the project

Control Options: Manual or automatic operation

Main Incoming Options: ACB, MCCB, isolator, or changeover switch

Electrical Components: MCBs, MCCBs, contactors, overload relays, meters, and indication lamps

Busbar Material: Electrolytic-grade copper or aluminium

Busbar Insulation: Heat-shrinkable insulating sleeves

Protection Ratings: IP42, IP52, or IP54, subject to the selected configuration

Cable Entry: Top or bottom entry

Metering: Analog or digital display options

Cooling: Natural or forced-air ventilation

Communication: Optional MODBUS, PROFIBUS, Ethernet, or other compatible interfaces

Mounting Options: Floor-standing, with wall mounting available on request

Dimensions: Customized according to site and project requirements

Enclosure Application: Indoor or outdoor versions, subject to design requirements

Expansion: Modular extension options for additional feeders or future requirements

Operating Temperature: -10°C to +55°C, subject to component and design selection

Ambient Temperature: Configurable for specified site conditions up to 50°C

Applications of MCC Panels

MCC panels are used wherever multiple electric motors need organized control, protection, and monitoring. Typical applications include:

Manufacturing Industries: Centralized control of production machinery and motor-driven equipment.

Water and Wastewater Treatment Plants: Operation of pumps, blowers, and treatment equipment.

Pharmaceutical and Chemical Plants: Motor management for process machinery and utility systems.

Textile Industries: Electrical control of spinning, weaving, processing, and auxiliary machinery.

Food Processing Units: Control of conveyors, mixers, pumps, and other motor-operated equipment.

Cement and Engineering Plants: Motor control for industrial machinery and material-handling systems.

Commercial and Industrial Buildings: Management of pumps, ventilation systems, and mechanical utilities.

Infrastructure and Utility Projects: Motor control arrangements for water supply, process utilities, and other industrial services.

Why Choose SERVO TECH CONTROL SYSTEM for MCC Panels?

Application-Based Design: Panel configurations can be selected according to motor loads, feeder quantities, and plant operating requirements.

Customizable Construction: Dimensions, cable entry, mounting arrangements, and compartment configurations can be specified for individual projects.

Organized Motor Control: Centralized control and monitoring help simplify the operation of multiple motors.

Electrical Protection Options: Suitable protective devices can be selected according to the electrical design and connected equipment.

Future Expansion: Modular construction can accommodate additional feeders where the original design permits.

Industrial Applications: Configurations can be developed for manufacturing facilities, processing plants, utilities, and infrastructure projects.

Pan-India Enquiries: Industrial buyers from Ahmedabad, Vadodara, Surat, Rajkot, Gandhinagar, and other Indian cities can enquire about their MCC panel requirements.

MCC Panel Manufacturer in Ahmedabad and Gujarat

If you are searching for an MCC Panel Manufacturer in Ahmedabad, SERVO TECH CONTROL SYSTEM offers configurable motor control panel solutions for industrial and commercial electrical systems. MCC panels can be specified according to operating voltage, current rating, motor quantity, incoming supply arrangement, feeder requirements, and site conditions.

We also welcome enquiries from customers looking for an MCC Panel Manufacturer in Gujarat, an industrial MCC panel supplier in India, a customized motor control center panel, or a 630A to 6300A MCC panel for plant automation.

Share your electrical single-line diagram, load details, feeder schedule, and installation requirements to obtain a configuration and quotation suitable for your project.

Frequently Asked Questions (FAQs)

1. What is an MCC Panel?

Ans -An MCC (Motor Control Center) Panel is an electrical assembly that brings together motor control and associated protection equipment in a centralized enclosure. It helps operators manage multiple electric motors used in industrial machinery, pumps, conveyors, and utility systems.

2. Who manufactures MCC Panels in Ahmedabad, Gujarat?

Ans -SERVO TECH CONTROL SYSTEM manufactures MCC panels for industrial motor control and electrical applications in Ahmedabad, Gujarat, India. Buyers can enquire about customized configurations based on their electrical and operational requirements.

3. What is the current rating of the MCC Panel?

Ans -The specified current rating ranges from 630A to 6300A. The appropriate rating depends on the total connected load, feeder requirements, busbar design, fault levels, and project specifications.

4. What is the operating voltage of this MCC Panel?

Ans -The rated operating voltage is 415V AC, with a rated insulation voltage of 660V AC. Final selection must match the electrical system and applicable design requirements.

5. Which materials are used to manufacture MCC Panels?

Ans -The enclosure is specified as mild steel sheet with an epoxy powder-coated finish. Busbars can be selected in electrolytic-grade copper or aluminium, depending on the design and electrical requirements.

6. Can the MCC Panel be customized?

Ans -Yes. Available customization options include panel dimensions, number of feeders, current rating, incoming switchgear, cable entry, busbar material, metering, control method, and compartment arrangement.

7. Which IP protection ratings are available?

Ans -IP42, IP52, and IP54 configurations are specified as options. The suitable rating should be selected according to the installation environment and the required level of protection against solid objects and water ingress.

8. Does the MCC Panel support automatic control?

Ans -Manual and automatic control arrangements are available as configuration options. The control philosophy and any additional automation hardware should be confirmed during technical discussions.

9. Which industries use MCC Panels?

Ans -MCC panels are commonly used in manufacturing, textile processing, water treatment, pharmaceuticals, chemicals, food processing, engineering, infrastructure, and other facilities that operate multiple electric motors.

10. What is the price of an MCC Panel?

Ans -The listed indicative price is ₹1,00,000 per piece, with a minimum order quantity of one piece. The final quotation depends on the current rating, number of feeders, switchgear, busbar specifications, enclosure protection, and customization requirements.

11. What is the delivery time for an MCC Panel?

Ans -The stated delivery time is seven days. Actual delivery depends on design approval, component availability, manufacturing requirements, testing, and dispatch arrangements.

12. Does SERVO TECH CONTROL SYSTEM supply MCC Panels across India?

Ans - Enquiries are welcome from industrial buyers throughout India, including Gujarat and other industrial regions. Confirm the delivery location, transportation arrangements, and installation support when requesting a quotation.

Request a Quotation for an MCC Panel

Contact SERVO TECH CONTROL SYSTEM to discuss your requirements for a 415V AC MCC Panel with current ratings from 630A to 6300A. Provide the required feeder count, connected motor loads, incoming supply details, protection rating, panel dimensions, and installation environment to help determine a suitable configuration.

SERVO TECH CONTROL SYSTEM – MCC Panel Manufacturer in Ahmedabad, Gujarat, India.

Note: Final pricing, delivery schedule, current rating, enclosure protection, component selection, and compliance requirements depend on the approved technical configuration. The stated price and delivery period should be reconfirmed before ordering.
