LT Panel

LT Panel Manufacturer in India

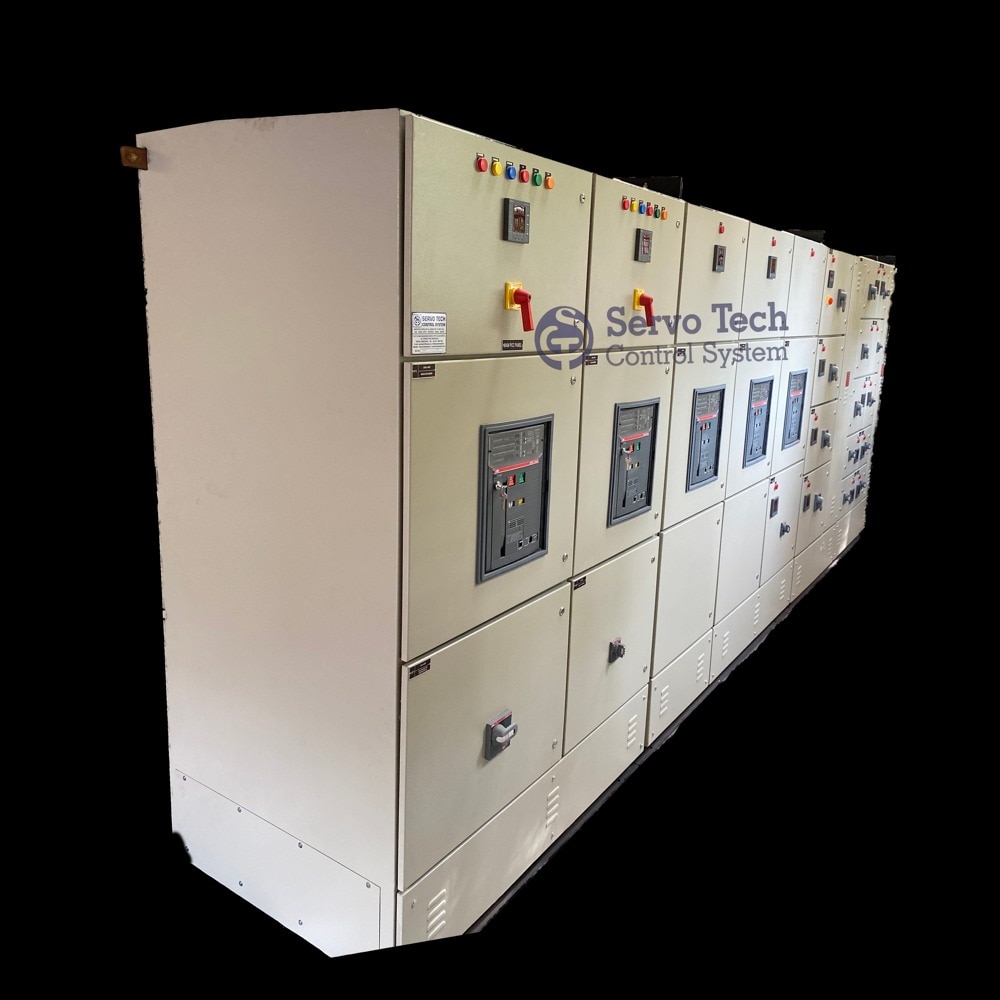

SERVO TECH CONTROL SYSTEM is a manufacturer of LT Panels (Low Tension Panels) designed for efficient electrical power distribution and motor control applications. Our floor-mounted LT Panels are manufactured using CRCA or mild steel enclosures with a durable epoxy-polyester powder-coated finish. Designed for industrial and commercial electrical systems, these panels support dependable power management, organized electrical connections, and application-specific configurations.

The LT Panel operates at 415V AC, three-phase, and 50Hz, with a rated insulation voltage of 660V. Available current ratings include 100A, 250A, 400A, 800A, and 1200A, depending on project requirements. The panel can be configured with electrical components such as MCBs, MCCBs, contactors, relays, busbars, and analog or digital energy meters.

SERVO TECH CONTROL SYSTEM offers customizable panel dimensions, multi-way arrangements, copper or aluminium busbars, dual earthing provisions, and top or bottom cable entry options. Depending on installation requirements, enclosure protection can be selected from IP42, IP54, or IP55 configurations. Natural air cooling and a double-door locking arrangement support practical operation and maintenance.

These LT Panels are suitable for factories, manufacturing facilities, commercial buildings, industrial plants, infrastructure projects, and other installations requiring low-voltage power distribution and motor control. Configurations can be developed for indoor or outdoor use according to the project specification.

With a minimum order quantity of one piece, a listed price of ₹1,00,000 per piece, and a stated supply capacity of 10 pieces per week, SERVO TECH CONTROL SYSTEM provides LT Panel solutions for different electrical distribution requirements across India. Final pricing and delivery depend on the selected rating, components, enclosure protection, and customization.

Key Features of LT Panel

Floor-mounted, floor-standing LT panel design.

Operating voltage of 415V AC, three-phase, 50Hz.

Rated insulation voltage of 660V.

Current ratings available from 100A to 1200A.

CRCA or mild steel cabinet construction.

Epoxy-polyester powder-coated finish in grey.

Copper or aluminium busbar options.

MCB, MCCB, contactor, relay, and metering component options.

Fully automatic or manual control configuration.

Custom dimensions and multi-way panel arrangements.

IP42, IP54, or IP55 enclosure options, as specified.

Dual earthing provision for electrical safety.

Top or bottom cable entry.

Natural air-cooling arrangement.

Double-door enclosure with a locking system.

Short-circuit withstand capacity up to 50kA for 1 second, subject to the specified design and verification.

Designed with reference to IEC 61439 / IS 8623 requirements, subject to the applicable design and conformity documentation.

Applications of LT Panels

Industrial Power Distribution: Used to distribute electrical power to different machines, production lines, and factory sections.

Motor Control Systems: Suitable for controlling and protecting motors used in manufacturing and industrial processes.

Commercial Buildings: Can be configured for electrical distribution in offices, shopping complexes, and commercial facilities.

Manufacturing Plants: Supports power management for machinery, processing equipment, and industrial utilities.

Infrastructure Projects: Used in electrical distribution installations where suitable ratings and protection configurations are required.

Warehouses and Workshops: Helps organize incoming power and outgoing electrical circuits.

Utility and Electrical Installations: Can be designed for project-specific low-voltage distribution requirements.

Benefits of Choosing an LT Panel from SERVO TECH CONTROL SYSTEM

Application-Specific Design: Panel ratings, dimensions, and internal arrangements can be selected according to project needs.

Durable Enclosure: Powder-coated sheet metal helps protect the cabinet surface against corrosion and everyday environmental exposure.

Flexible Component Selection: Suitable MCBs, MCCBs, contactors, relays, and meters can be incorporated as specified.

Multiple Current Ratings: Options from 100A to 1200A support different electrical distribution capacities.

Installation Flexibility: Top or bottom cable entry and customized panel layouts help accommodate site requirements.

Maintenance Accessibility: A suitable door and component arrangement supports inspection and servicing.

Order Flexibility: A minimum order quantity of one piece allows enquiries for individual panels as well as project requirements.

LT Panel Price and Ordering Information

Listed Price: ₹1,00,000 per piece.

Minimum Order Quantity: 1 piece.

Supply Capacity: 10 pieces per week.

Stated Delivery Time: 7 days, subject to order confirmation and specifications.

Customization: Available according to selected current rating, dimensions, components, enclosure protection, and installation requirements.

The final LT Panel quotation should be confirmed with SERVO TECH CONTROL SYSTEM after reviewing the electrical load, incoming supply details, outgoing feeders, short-circuit level, and required protection configuration.

Frequently Asked Questions About LT Panels

1. What is an LT Panel?

Ans - An LT Panel, or Low Tension Panel, is an electrical assembly used to distribute low-voltage power to different circuits and equipment. Depending on its design, it may also provide switching, metering, control, and electrical protection functions.

2. What is the operating voltage of this LT Panel?

Ans - The panel is specified for 415V AC, three-phase operation at 50Hz, with a rated insulation voltage of 660V. The final configuration must match the electrical system and connected equipment.

3. Which current ratings are available?

Ans - The listed current ratings are 100A, 250A, 400A, 800A, and 1200A. The appropriate rating depends on the connected load, feeder requirements, and electrical design.

4. Can the LT Panel be customized?

Ans - Yes. Dimensions, multi-way arrangements, control modes, busbar materials, cable entry positions, metering options, and enclosure protection can be selected according to project requirements.

5. Which materials are used to manufacture the LT Panel?

Ans - The cabinet is specified in CRCA or mild steel with a powder-coated finish. Busbars can be selected in electrolytic-grade copper or aluminium, depending on the approved design.

6. Is this LT Panel suitable for industrial applications?

Ans - Yes. It can be configured for industrial power distribution, motor control, manufacturing facilities, workshops, commercial buildings, and other suitable electrical installations.

7. What enclosure protection levels are available?

Ans - The listed options are IP42, IP54, and IP55. The appropriate enclosure rating should be selected according to the installation environment and the required level of protection against solid objects and water ingress.

8. What is the price of the LT Panel?

Ans - The listed price is ₹1,00,000 per piece, with a minimum order quantity of one piece. The final quotation may vary with current rating, components, enclosure protection, and customization.

9. What is the delivery time and supply capacity?

Ans - The stated delivery time is seven days, and the listed supply capacity is ten pieces per week. Confirm the actual dispatch schedule before placing an order.

10. Which standards are applicable to this LT Panel?

Ans - IEC 61439 and IS 8623 are listed as applicable standards. Buyers should request the relevant design, test, and conformity documents to verify the standards applicable to the supplied panel.

Find an LT Panel Manufacturer in India

If you are searching for an LT Panel Manufacturer in India, SERVO TECH CONTROL SYSTEM offers configurable floor-mounted LT Panels for low-voltage power distribution and motor control applications. Contact the company with your current rating, electrical load, required protection level, component list, and installation details to obtain a project-specific quotation.
