ATS Panel

ATS Panel Manufacturer in India

SERVO TECH CONTROL SYSTEM is a manufacturer of ATS Panels (Automatic Transfer Switch Panels) designed to manage power transfer between the main electrical supply and a backup power source. Equipped with a microprocessor-based controller, the ATS Panel monitors the incoming power supply and initiates source transfer when required, helping maintain electrical continuity for industrial, commercial, and data centre applications.

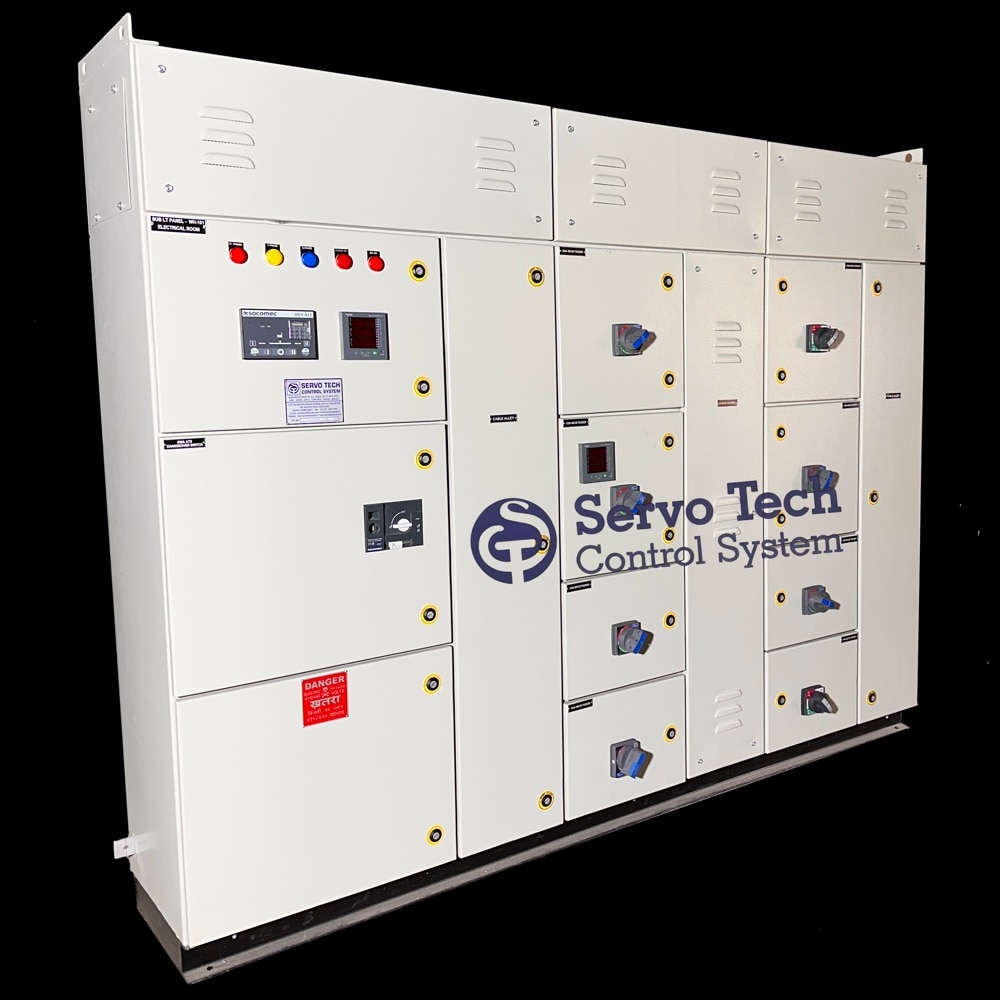

This floor-standing ATS Panel supports current ratings up to 1600A and operates on a 415V AC, three-phase, 50Hz electrical system. Its mild steel enclosure, powder-coated finish, IP54 protection rating, and electrolytic copper busbars make it suitable for indoor power distribution installations. Automatic and manual operating modes offer flexibility for routine operation, testing, and maintenance.

SERVO TECH CONTROL SYSTEM provides ATS Panel solutions for facilities that require dependable source switching, electrical protection, and organised power management.

Key Features of the ATS Panel

Microprocessor-Based Control: Monitors the electrical supply and manages automatic transfer operations.

Current Capacity: Designed for rated current applications up to 1600A.

Automatic and Manual Modes: Supports automatic source transfer and manual operation.

Three-Phase Operation: Suitable for 415V AC, 50Hz electrical systems.

Electrical Safety: Incorporates overload protection and safety interlocks.

IP54 Enclosure: Provides protection against dust ingress and water splashes, subject to the enclosure's verified rating and installation conditions.

Robust Cabinet Construction: Manufactured with a 2mm-thick mild steel cabinet.

Electrolytic Copper Busbars: Designed for effective electrical power distribution when correctly rated and installed.

Natural Air Cooling: Uses natural airflow for heat dissipation.

Floor-Standing Design: Suitable for dedicated electrical rooms and indoor industrial installations.

Powder-Coated Finish: Supports surface durability and corrosion resistance.

Integrated Electrical Components: Can include contactors, control relays, MCCBs, MCBs, terminal blocks, and indication lamps.

How Does an ATS Panel Work?

An Automatic Transfer Switch Panel controls the changeover between a primary electrical supply and an alternate power source, such as a standby generator.

1. Normal Power Supply: The controller monitors the primary source and maintains the configured supply arrangement while the source remains within acceptable operating limits.

2. Detection of Power Failure: If the main supply fails or falls outside the configured limits, the controller initiates the transfer sequence.

3. Backup Source Transfer: Where generator-start functionality is provided, the controller can send a start command to the generator. Once the alternate supply is ready, the ATS transfers the load according to its configured switching sequence.

4. Return to the Main Supply: After the primary supply is restored and confirmed stable, the controller can transfer the load back to the main source according to the programmed settings.

The actual transfer time and operating sequence depend on the selected controller, switching equipment, source availability, and system configuration. An ATS does not inherently provide uninterrupted, zero-break power; applications requiring no-break operation may need a suitable UPS or other supporting equipment.

Applications of ATS Panel

The ATS Panel manufactured by SERVO TECH CONTROL SYSTEM can be considered for the following applications:

Industrial Manufacturing Plants: Supports power source changeover for production machinery and essential electrical loads.

Commercial Buildings: Helps manage electrical continuity for building services and critical equipment.

Data Centres: Supports transfer to an alternate power source for appropriately designed backup power systems.

Hospitals and Healthcare Facilities: Can form part of an emergency power arrangement for designated loads, subject to applicable electrical and healthcare requirements.

Warehouses and Logistics Facilities: Supports power management for essential lighting, equipment, and operational systems.

Generator Backup Systems: Coordinates changeover between utility power and a compatible standby generator.

Infrastructure Projects: Suitable for specified indoor power distribution and backup supply installations.

Benefits of Installing an ATS Panel

Reduces the need for manual intervention during configured power-transfer events.

Helps minimise downtime associated with utility supply interruptions.

Supports controlled switching between two electrical power sources.

Improves operational flexibility through automatic and manual modes.

Provides a structured arrangement for electrical protection and source isolation.

Enables integration into appropriately engineered generator backup systems.

Offers a floor-standing enclosure for organised installation of switching and control components.

ATS Panel Price in India

The indicative price of the ATS Panel from SERVO TECH CONTROL SYSTEM is ₹70,000 per unit, with a minimum order quantity of one unit. The quoted price should be verified with the manufacturer before placing an order.

The final cost may vary according to the required current rating, switching mechanism, make of electrical components, controller functions, copper busbar configuration, protection requirements, and installation specifications.

For an accurate quotation, buyers should share the required load capacity, incoming power sources, generator details, installation conditions, and any project-specific electrical requirements.

Why Choose SERVO TECH CONTROL SYSTEM?

SERVO TECH CONTROL SYSTEM manufactures ATS Panels for applications that require organised electrical source switching and dependable power management. With a microprocessor-based control arrangement, floor-standing mild steel enclosure, and provision for safety interlocks and overload protection, the panel can be configured for suitable industrial and commercial requirements.

Whether the application involves a manufacturing facility, commercial building, or generator-backed electrical installation, selecting the correct ATS Panel capacity and switching configuration is essential for safe and reliable operation.

Contact SERVO TECH CONTROL SYSTEM for ATS Panel specifications, configuration details, availability, and quotations for your project.

Frequently Asked Questions (FAQs)

1. What is an ATS Panel?

Ans -An ATS (Automatic Transfer Switch) Panel is an electrical control assembly that switches a connected load between a primary power source and an alternate source when specified operating conditions are met. It is commonly used with utility and generator supplies.

2. What is the current rating of this ATS Panel?

Ans -This ATS Panel is specified for current ratings up to 1600A. The appropriate rating must be selected according to the load, fault level, switching arrangement, and electrical installation requirements.

3. What voltage does the ATS Panel operate at?

Ans -The panel is specified for 415V AC, three-phase operation at 50Hz, with a stated insulation voltage of 1100V. Final ratings should be confirmed against the manufacturer's technical documentation.

4. What is the price of an ATS Panel from SERVO TECH CONTROL SYSTEM?

Ans -The indicative listed price is ₹70,000 per unit, with a minimum order quantity of one unit. Confirm the final quotation, applicable taxes, delivery charges, and selected component specifications with the manufacturer.

5. Is the ATS Panel suitable for generator backup?

Ans -Yes. It can be configured for compatible utility-generator changeover applications. Generator-start control, transfer timing, source monitoring, and return-to-mains functions should be confirmed for the selected model.

6. What does IP54 protection mean?

Ans -IP54 indicates protection against harmful dust ingress and water splashes under specified test conditions. It does not mean the enclosure is waterproof or suitable for unrestricted outdoor exposure. This model is specified for indoor service.

7. Which industries use ATS Panels?

Ans -ATS Panels are used in manufacturing plants, commercial buildings, data centres, healthcare facilities, warehouses, and other installations where an alternate electrical supply is required.

8. What are the main components of an ATS Panel?

Ans -Depending on the configuration, the panel may include a microprocessor-based controller, contactors or other switching devices, MCCBs, MCBs, control relays, terminal blocks, indication lamps, and copper busbars.

9. What is the delivery time for the ATS Panel?

Ans -The stated delivery time is approximately two weeks. Actual delivery depends on the final configuration, component availability, order confirmation, and manufacturing schedule.

10. How can I select the correct ATS Panel?

Ans - Selection should consider the connected load, rated current, operating voltage, fault withstand requirements, type of alternate source, switching sequence, protection settings, and installation environment. A qualified electrical professional should verify the design before installation.

Note: The final price, component selection, transfer arrangement, protection settings, and delivery schedule should be confirmed with the manufacturer. Compliance with the applicable standard depends on the final design, component selection, testing, and certification.
